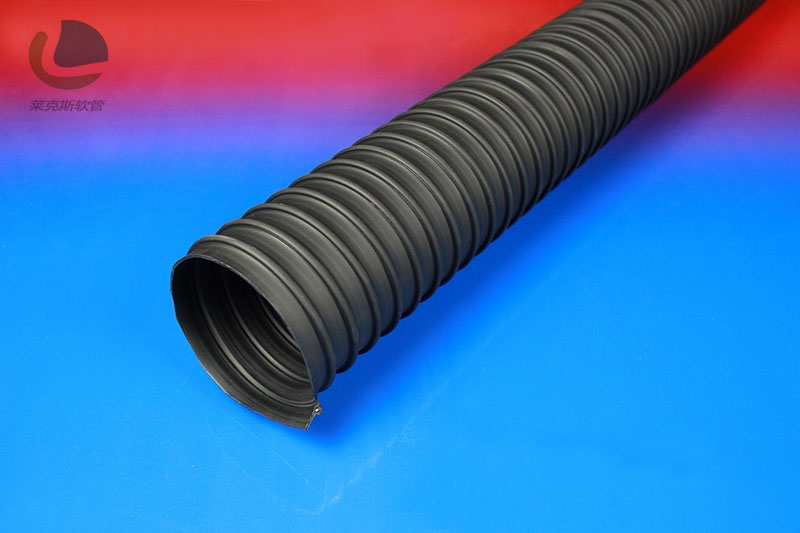

Acid and alkali resistant hose LKE333

Productsproduct

Materials:

Spiral coil: Spring metal wire
Tube wall: Thermoplastic Vulcanizate (TPV)
Wall thickness: 0.9 mm

Product Applications:

Suitable for suctioning steam, air from engine sets, and conveying hoses for exchanging hot and cold air in vehicles and engine sets; applicable to gases and liquids.

Product Properties:

Very light, extremely flexible, with a very small bending radius.
Flame-retardant, complying with UL 94 standards; conforms to RoHS standards.
Excellent resistance to alkaline, acidic, and solvent vapors; good UV and ozone resistance.
Good airtightness, free of plasticizers, nearly smooth inner wall, and superior fluidity.
According to TRBS2153 requirements, suitable for non-flammable dust/particles and low-conductivity gases/liquids. The spiral metal coil should be grounded at both ends to ensure static electricity elimination.

Temperature Range:

From -40°C to +130°C, with a short-term tolerance up to +150°C.

Item NO	ID mm	OD mm	Working Pressure bar	Vacuum Pressure mmWC	Bending Radius mm	Length M
LKE-333-025	25	31	1.16	8800	34	20/10
LKE-333-032	32	40	0.91	7975	44	20/10
LKE-333-038	38	46	0.75	7425	50	20/10
LKE-333-040	40	48	0.75	7425	52	20/10
LKE-333-045	45	53	0.67	6600	58	20/10
LKE-333-050	50	58	0.60	5775	63	20/10
LKE-333-055	55	63	0.56	4950	69	20/10
LKE-333-060	60	68	0.50	4950	74	20/10
LKE-333-065	65	73	0.46	4125	80	20/10
LKE-333-070	70	78	0.40	4125	85	20/10
LKE-333-075	75	84	0.40	3300	92	20/10
LKE-333-080	80	88	0.35	3300	96	20/10
LKE-333-090	90	99	0.30	2475	108	20/10
LKE-333-100	100	110	0.30	2475	121	20/10
LKE-333-110	110	119	0.25	2475	130	20/10
LKE-333-115	115	124	0.25	2475	136	20/10
LKE-333-120	120	129	0.25	2475	141	20/10
LKE-333-125	125	135	0.25	2475	148	20/10
LKE-333-130	130	139	0.20	2475	152	20/10
LKE-333-140	140	149	0.20	1650	163	20/10
LKE-333-150	150	161	0.20	1650	177	20/10
LKE-333-160	160	170	0.20	1650	187	20/10
LKE-333-170	170	180	0.15	1650	198	20/10
LKE-333-175	175	185	0.15	1650	203	20/10
LKE-333-180	180	190	0.15	1650	209	20/10
LKE-333-200	200	214	0.15	1650	235	20/10
LKE-333-225	225	235	0.10	825	258	20/10
LKE-333-250	250	260	0.10	825	286	20/10
LKE-333-275	275	284	0.10	825	312	20/10
LKE-333-280	280	290	0.10	825	319	20/10
LKE-333-300	300	310	0.09	742	341	20/10
LKE-333-315	315	325	0.09	742	357	20/10
LKE-333-325	325	335	0.09	742	368	20/10
LKE-333-350	350	360	0.05	742	396	20/10

All the aforementioned data are average values measured at an ambient temperature of +20°C. Custom lengths, sizes, and colors are available upon request, and the option for printing logos is also provided. Please note that relevant technical parameters and colors may vary depending on the environment.
