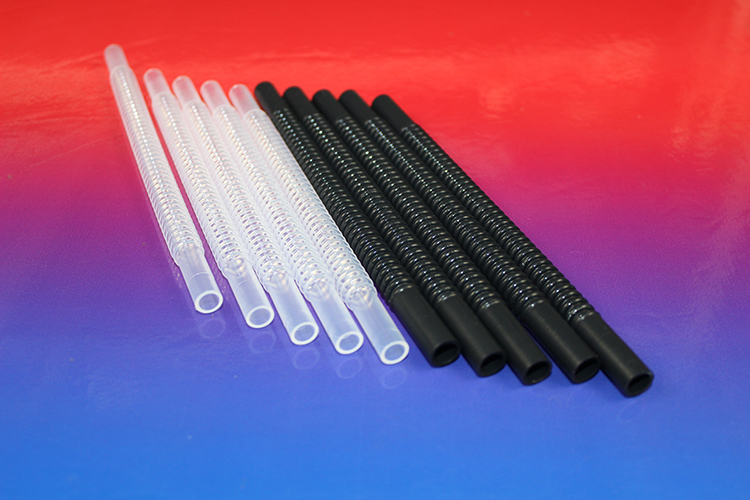

FEP波纹管LKE00365
颜色：透明，黑色，其他颜色可定制
特性
常用特性：
使用温度：-200℃至+200℃
易加工性：能翻边，焊接
耐老化性：可长时间暴露在臭氧、阳光下、不老化
高透明性：在所有塑料中折射率较低，可以非常直观看清管内介质的流动状况
耐腐蚀性：能够承受除了熔融的碱金属，氟化介质以及高于300℃之外的所有强酸，强氧化剂，强还原剂及各种有机溶剂的作用。
不常用特性：
密度：2.14-2.17g/cm³
体积电阻>1× 10^18
表面电阻>2× 10^13
耐电弧>165秒不漏电
低吸水性：吸水率<0.1%
最低摩擦系数：摩擦系数最小
表面不粘性：已知的固体材料头不能粘附在表面上
不燃性：空气中不会燃烧，符合对消防要求严格的场所
无毒性：无毒无味，具有生理惰性，对人和环境没有任何危害
应用领域： FEP波纹管广泛应用于半导体制造、液冷系统、数据中心冷却系统、电子工业、化学加工、医疗器械、食品处理、制药生产、航空航天及热交换系统等多个领域。在这些高精尖的行业中，FEP波纹管以其卓越的性能，为流体传输、气体控制、电气绝缘及热交换等关键环节提供了可靠保障。
|
订购代码 |
规格 |
内径 |
外径 |
生产长度 |
||
|
Item No |
specification |
mm |
mm |
mm/条 |
||
|
LKE-365-006-103-tc |
6mm*8mm*L103mm |
6 |
8 |
103 |
||
|
LKE-365-006-105-tc |
6mm*8mm*L105mm |
6 |
8 |
105 |
||
|
LKE-365-006-113-tc |
6mm*8mm*L113mm |
6 |
8 |
113 |
||
|
LKE-365-006-135-tc |
6mm*8mm*L135mm |
6 |
8 |
135 |
||
|
LKE-365-006-136-tc |
6mm*8mm*L136mm |
6 |
8 |
136 |
||
|
LKE-365-006-137-tc |
6mm*8mm*L137mm |
6 |
8 |
137 |
||
|
LKE-365-006-155-tc |
6mm*8mm*L155mm |
6 |
8 |
155 |
||
|
LKE-365-006-158-ba |
6mm*8mm*L158mm |
6 |
8 |
158 |
||
|
LKE-365-006-165-ba |
6mm*8mm*L165mm |
6 |
8 |
165 |
||
|
LKE-365-006-169-tc |
6mm*8mm*L169mm |
6 |
8 |
169 |
||
|
LKE-365-006-175-tc |
6mm*8mm*L175mm |
6 |
8 |
175 |
||
|
LKE-365-006-218-ba |
6mm*8mm*L218mm |
6 |
8 |
218 |
||
|
LKE-365-006-255-tc |
6mm*8mm*L255mm |
6 |
8 |
255 |
||
|
LKE-365-006-300-tc |
6mm*8mm*L300mm |
6 |
8 |
300 |
||
|
LKE-365-006-308-tc |
6mm*8mm*L308mm |
6 |
8 |
308 |
||
|
LKE-365-006-318-tc |
6mm*8mm*L318mm |
6 |
8 |
318 |
||
|
LKE-365-006-340-tc |
6mm*8mm*L340mm |
6 |
8 |
340 |
||
|
LKE-365-006-370-tc |
6mm*8mm*L370mm |
6 |
8 |
370 |
||
|
LKE-365-006-380-tc |
6mm*8mm*L380mm |
6 |
8 |
380 |
||
|
LKE-365-006-400-tc |
6mm*8mm*L400mm |
6 |
8 |
400 |
||
|
LKE-365-006-469-tc |
6mm*8mm*L469mm |
6 |
8 |
469 |
||
|
LKE-365-006-490-tc |
6mm*8mm*L490mm |
6 |
8 |
490 |
||
|
LKE-365-006-500-tc |
6mm*8mm*L500mm |
6 |
8 |
500 |
||
|
LKE-365-006-520-tc |
6mm*8mm*L520mm |
6 |
8 |
520 |
||
|
LKE-365-006-525-ba |
6mm*8mm*L525mm |
6 |
8 |
525 |
||
|
LKE-365-006-577-tc |
6mm*8mm*L577mm |
6 |
8 |
577 |
||
|
LKE-365-006-617-tc |
6mm*8mm*L617mm |
6 |
8 |
617 |
||
|
LKE-365-006-650-tc |
6mm*8mm*L650mm |
6 |
8 |
650 |
||
|
LKE-365-006-780-tc |
6mm*8mm*L780mm |
6 |
8 |
780 |
||
|
LKE-365-006-960-tc |
6mm*8mm*L960mm |
6 |
8 |
960 |
||
|
LKE-365-007-158-ba |
7mm*9mm*L158MM |
7 |
9 |
158 |
||
|
LKE-365-007-165-ba |
7mm*9mm*L165MM |
7 |
9 |
165 |
||
|
LKE-365-007-218-ba |
7mm*9mm*L218MM |
7 |
9 |
218 |
||
|
LKE-365-007-525-ba |
7mm*9mm*L525MM |
7 |
9 |
525 |
||
|
LKE-365-007-695-ba |
7mm*9mm*L695mm |
7 |
9 |
695 |
||
|
LKE-365-007-839-ba |
7mm*9mm*L839mm |
7 |
9 |
839 |
||
|
LKE-365-008-173-tc |
8mm*10mm*L173mm |
8 |
10 |
173 |
||
|
LKE-365-008-182-tc |
8mm*10mm*L182MM |
8 |
10 |
182 |
||
|
LKE-365-008-213-tc |
8mm*10mm*L213mm |
8 |
10 |
213 |
||
|
LKE-365-008-227-tc |
8mm*10mm*L227MM |
8 |
10 |
227 |
||
|
LKE-365-008-307-tc |
8mm*10mm*L307mm |
8 |
10 |
307 |
||
|
LKE-365-008-323-tc |
8mm*10mm*L323mm |
8 |
10 |
325 |
||
|
LKE-365-008-390-tc |
8mm*10mm*L390mm |
8 |
10 |
390 |
||
|
LKE-365-008-457-tc |
8mm*10mm*L457mm |
8 |
10 |
457 |
||
|
LKE-365-008-136-tc |
8mm*10mm*L136mm |
8 |
10 |
136 |
||
|
LKE-365-008-169-tc |
8mm*10mm*L169mm |
8 |
10 |
169 |
||
|
LKE-365-008-330-tc |
8mm*10mm*L330mm |
8 |
10 |
330 |
||
|
LKE-365-008-427-tc |
8mm*10mm*L427mm |
8 |
10 |
427 |
||
|
LKE-365-008-500-tc |
8mm*10mm*L500mm |
8 |
10 |
500 |
||
|
LKE-365-008-522-tc |
8mm*10mm*L522mm |
8 |
10 |
522 |
||
|
LKE-365-008-600-tc |
8mm*10mm*L600mm |
8 |
10 |
600 |
||
|
LKE-365-008-800-tc |
8mm*10mm*L800mm |
8 |
10 |
800 |
||
|
LKE-365-008-950-tc |
8mm*10mm*L950mm |
8 |
10 |
950 |
||
|
LKE-365-008-1000-tc |
8mm*10mm*L1000mm |
8 |
10 |
1000 |
||
|
LKE-365-11.3-672-tc |
11.3mm*14mm*L672mm |
11.3 |
14 |
672 |
||
|
LKE-365-11.3-695-tc |
11.3mm*14mm*L695mm |
11.3 |
14 |
695 |
||
|
LKE-365-11.3-710-tc |
11.3mm*14mm*L710mm |
11.3 |
14 |
710 |
||
|
LKE-365-012-250-tc |
12mm*14mm*L250mm |
12 |
14 |
250 |
||
|
LKE-365-012-200-tc |
12mm*14mm*L200mm |
12 |
14 |
200 |
||
|
LKE-365-012-500-tc |
12mm*15mm*L500mm |
12 |
15 |
500 |
||
|
LKE-365-012-755-tc |
12mm*14mm*L755mm |
12 |
14 |
755 |
||
|
LKE-365-012-757-tc |
12mm*14mm*L757mm |
12 |
14 |
757 |
||
|
LKE-365-012-775-tc |
12mm*14mm*L775mm |
12 |
14 |
775 |
||
|
LKE-365-012-777-tc |
12mm*14mm*L777mm |
12 |
14 |
777 |
||
|
LKE-365-012-200-tc |
12mm*15mm*L200mm |
12 |
15 |
200 |
注：上述规格为常用规格，波纹内径、外径仅供参考，具体以实物为准。
