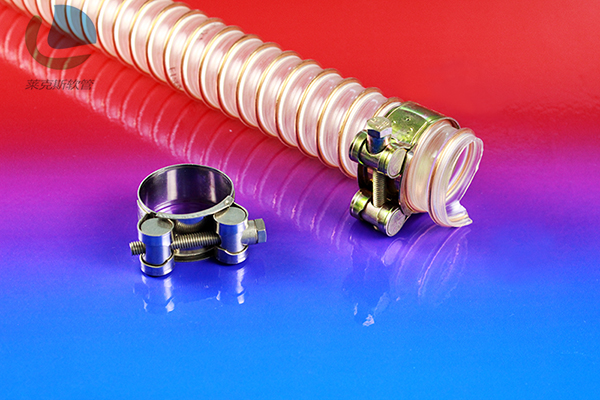

应用：用于连接外壁平滑的重型软管
特性:
快速简易的安装
可反复使用
符合 RoHS 规定
结构:
品质: W1; 卡箍带: 镀锌钢; 螺丝: 镀锌钢;
品质: W2; 卡箍带: 不锈钢 1.4016 = AISI 430; 螺丝: 镀锌钢;
品质: W4; 卡箍带: 不锈钢 1.4301 = AISI 304; 螺丝: 不锈钢 1.4301 = AISI 304
定制化交货:
可提供其它长度及直径产品
|
订购代码 Item No |
紧固 范围 mm |
带 宽度 mm |
||
|
材料W1 |
||||
|
LKE-192-0021 |
17-19 |
18 |
||
|
LKE-192-0023 |
20-22 |
18 |
||
|
LKE-192-0025 |
23-25 |
18 |
||
|
LKE-192-0029 |
26-28 |
18 |
||
|
LKE-192-0031 |
29-31 |
18 |
||
|
LKE-192-0034 |
32-35 |
18 |
||
|
LKE-192-0040 |
36-39 |
18 |
||
|
LKE-192-0043 |
40-43 |
18 |
||
|
LKE-192-0047 |
44-47 |
20 |
||
|
LKE-192-0051 |
48-51 |
20 |
||
|
LKE-192-0055 |
52-55 |
20 |
||
|
LKE-192-0059 |
56-59 |
20 |
||
|
LKE-192-0063 |
60-63 |
20 |
||
|
LKE-192-0068 |
64-67 |
20 |
||
|
LKE-192-0073 |
68-73 |
25 |
||
|
LKE-192-0079 |
74-79 |
25 |
||
|
LKE-192-0085 |
80-85 |
25 |
||
|
LKE-192-0091 |
86-91 |
25 |
||
|
LKE-192-0097 |
92-97 |
25 |
||
|
LKE-192-0104 |
98-103 |
25 |
||
|
LKE-192-0112 |
104-112 |
25 |
||
|
LKE-192-0121 |
113-121 |
25 |
||
|
LKE-192-0130 |
122-130 |
25 |
||
|
LKE-192-0140 |
131-139 |
30 |
||
|
LKE-192-0150 |
140-148 |
30 |
||
|
LKE-192-0162 |
149-161 |
30 |
||
|
LKE-192-0174 |
162-174 |
30 |
||
|
LKE-192-0187 |
175-187 |
30 |
||
|
LKE-192-0200 |
188-200 |
30 |
||
|
LKE-192-0213 |
201-213 |
30 |
||
|
LKE-192-0226 |
214-226 |
30 |
||
|
LKE-192-0239 |
227-239 |
30 |
||
|
LKE-192-0252 |
240-252 |
30 |
||
|
材料W2 |
||||
|
LKE-192-0021 |
17-19 |
18 |
||
|
LKE-192-0023 |
20-22 |
18 |
||
|
LKE-192-0025 |
23-25 |
18 |
||
|
LKE-192-0029 |
26-28 |
18 |
||
|
LKE-192-0031 |
29-31 |
18 |
||
|
LKE-192-0034 |
32-35 |
18 |
||
|
LKE-192-0040 |
36-39 |
18 |
||
|
LKE-192-0043 |
40-43 |
18 |
||
|
LKE-192-0047 |
44-47 |
20 |
||
|
LKE-192-0051 |
48-51 |
20 |
||
|
LKE-192-0055 |
52-55 |
20 |
||
|
LKE-192-0059 |
56-59 |
20 |
||
|
LKE-192-0063 |
60-63 |
20 |
||
|
LKE-192-0068 |
64-67 |
20 |
||
|
LKE-192-0073 |
68-73 |
25 |
||
|
LKE-192-0079 |
74-79 |
25 |
||
|
LKE-192-0085 |
80-85 |
25 |
||
|
LKE-192-0091 |
86-91 |
25 |
||
|
LKE-192-0097 |
92-97 |
25 |
||
|
LKE-192-0104 |
98-103 |
25 |
||
|
LKE-192-0112 |
104-112 |
25 |
||
|
LKE-192-0121 |
113-121 |
25 |
||
|
LKE-192-0130 |
122-130 |
25 |
||
|
LKE-192-0140 |
131-139 |
30 |
||
|
LKE-192-0150 |
140-148 |
30 |
||
|
LKE-192-0162 |
149-161 |
30 |
||
|
LKE-192-0174 |
162-174 |
30 |
||
|
LKE-192-0187 |
175-187 |
30 |
||
|
LKE-192-0200 |
188-200 |
30 |
||
|
LKE-192-0213 |
201-213 |
30 |
||
|
LKE-192-0226 |
214-226 |
30 |
||
|
LKE-192-0239 |
227-239 |
30 |
||
|
LKE-192-0252 |
240-252 |
30 |
||
|
材料W4 |
||||
|
LKE-192-0021 |
17-19 |
18 |
||
|
LKE-192-0023 |
20-22 |
18 |
||
|
LKE-192-0025 |
23-25 |
18 |
||
|
LKE-192-0029 |
26-28 |
18 |
||
|
LKE-192-0031 |
29-31 |
18 |
||
|
LKE-192-0034 |
32-35 |
18 |
||
|
LKE-192-0040 |
36-39 |
18 |
||
|
LKE-192-0047 |
44-47 |
20 |
||
|
LKE-192-0051 |
48-51 |
20 |
||
|
LKE-192-0055 |
52-55 |
20 |
||
|
LKE-192-0059 |
56-59 |
20 |
||
|
LKE-192-0063 |
60-63 |
20 |
||
|
LKE-192-0068 |
64-67 |
20 |
||
|
LKE-192-0073 |
68-73 |
25 |
||
|
LKE-192-0079 |
74-79 |
25 |
||
|
LKE-192-0085 |
80-85 |
25 |
||
|
LKE-192-0091 |
86-91 |
25 |
||
|
LKE-192-0097 |
92-97 |
25 |
||
|
LKE-192-0104 |
98-103 |
25 |
||
|
LKE-192-0112 |
104-112 |
25 |
||
|
LKE-192-0121 |
113-121 |
25 |
||
|
LKE-192-0130 |
122-130 |
25 |
||
|
LKE-192-0140 |
131-139 |
30 |
||
|
LKE-192-0150 |
140-148 |
30 |
||
|
LKE-192-0162 |
149-161 |
30 |
||
|
LKE-192-0174 |
162-174 |
30 |
||
|
LKE-192-0187 |
175-187 |
30 |
||
|
LKE-192-0200 |
188-200 |
30 |
||
|
LKE-192-0213 |
201-213 |
30 |
||
|
LKE-192-0226 |
214-226 |
30 |
||
|
LKE-192-0239 |
227-239 |
30 |
||
|
LKE-192-0252 |
240-252 |
30 |
||
